Iterative Density Ratio based on Sample Loss

import matplotlib.pyplot as plt
import numpy as np
from sklearn.ensemble import GradientBoostingClassifier
from sklearn.metrics import log_loss
from sklearn.model_selection import StratifiedShuffleSplit, train_test_split
from sklearn.preprocessing import LabelBinarizer, LabelEncoder

from bqlearn.corruptions import make_label_noise
from bqlearn.density_ratio import IPDR

seed = 1
rng = np.random.RandomState(seed)
X = rng.randn(1000, 2)
y = np.logical_xor(X[:, 0] > 0, X[:, 1] > 0)
y = LabelEncoder().fit_transform(y)

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.3, random_state=seed, stratify=y
)

trusted, untrusted = next(
    StratifiedShuffleSplit(train_size=0.05, random_state=seed).split(X_train, y_train)
)

sample_quality = np.ones(X_train.shape[0])
sample_quality[untrusted] = 0

y_corrupted = np.copy(y_train)
y_corrupted[untrusted] = make_label_noise(
    y_corrupted[untrusted],
    noise_matrix="permutation",
    noise_ratio=0.4,
    random_state=seed,
)
noisy = y_corrupted[untrusted] != y_train[untrusted]
clean = y_corrupted[untrusted] == y_train[untrusted]

Y_corrupted = LabelBinarizer().fit_transform(y_corrupted)
if Y_corrupted.shape[1] == 1:
    Y_corrupted = np.hstack((1 - Y_corrupted, Y_corrupted))

gbm = GradientBoostingClassifier(
    n_estimators=1, warm_start=True, learning_rate=0.05, max_depth=3, random_state=seed
)
n_estimators = 100
ipdr = IPDR(gbm, exploit_iterative_learning=True, n_estimators=n_estimators)
ipdr.fit(X_train, y_corrupted, sample_quality=sample_quality)

IPDR(estimator=GradientBoostingClassifier(learning_rate=0.05, n_estimators=1,
                                          random_state=1, warm_start=True),
     exploit_iterative_learning=True, n_estimators=100)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

staged_sample_weights_untrusted = ipdr.sample_weights_[untrusted, :]
fig = plt.figure()
plt.plot(staged_sample_weights_untrusted[clean, :].mean(axis=0), label="clean")
plt.fill_between(
    np.arange(n_estimators),
    staged_sample_weights_untrusted[clean, :].mean(axis=0)
    - staged_sample_weights_untrusted[clean, :].var(axis=0),
    staged_sample_weights_untrusted[clean, :].mean(axis=0)
    + staged_sample_weights_untrusted[clean, :].var(axis=0),
    alpha=0.2,
    color="blue",
)
plt.plot(staged_sample_weights_untrusted[noisy, :].mean(axis=0), label="noisy")
plt.fill_between(
    np.arange(n_estimators),
    staged_sample_weights_untrusted[noisy, :].mean(axis=0)
    - staged_sample_weights_untrusted[noisy, :].var(axis=0),
    staged_sample_weights_untrusted[noisy, :].mean(axis=0)
    + staged_sample_weights_untrusted[noisy, :].var(axis=0),
    alpha=0.2,
    color="orange",
)
plt.xlabel("Iterations")
plt.ylabel("Weight")

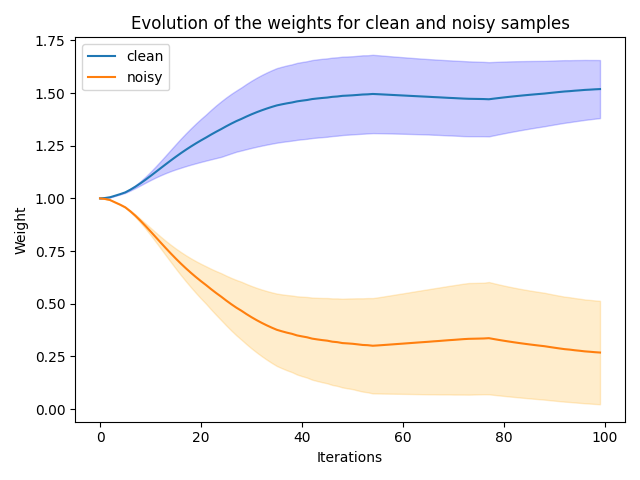

plt.title("Evolution of the weights for clean and noisy samples")
plt.legend()
plt.tight_layout()
plt.show()

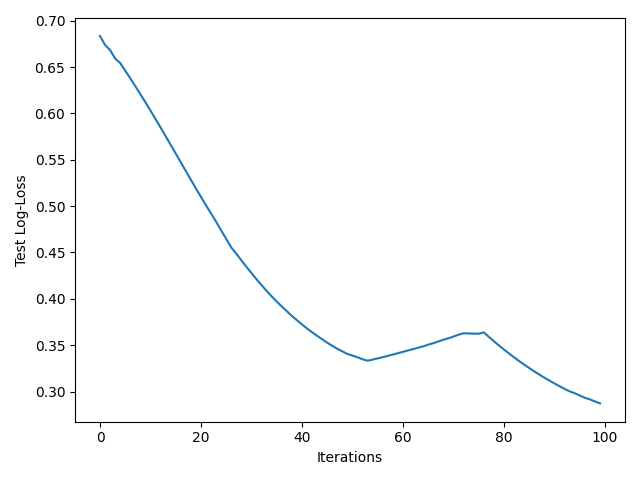

fig = plt.figure()
staged_losses_test = []
for probs in ipdr.estimator_.staged_predict_proba(X_test):
    losses = log_loss(y_test, probs)
    staged_losses_test.append(losses)
staged_losses_test = np.stack(staged_losses_test)

plt.plot(staged_losses_test)
plt.xlabel("Iterations")
plt.ylabel("Test Log-Loss")
plt.tight_layout()
plt.show()
